253 MA Stainless Steel

Pipe, Bar, Plate, Fittings, Flanges, Valves

Applied Alloys International is Australia’s premier source of 253 MA / UNS S30815 Stainless Steel.

253 MA is an austenitic, chromium-nickel stainless steel with heat resistance and high strength. 253 MA stainless steel is alloyed with nitrogen and reactive elements suitable for a wide range of high-temperature applications. The use of rare earth metals in combination with silicon gives superior oxidation resistance up to 1150°C.

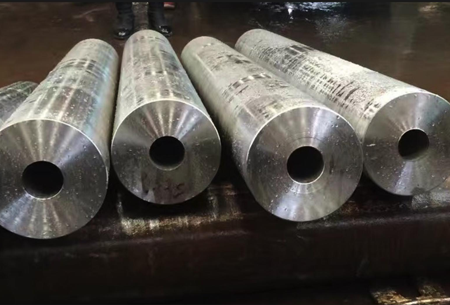

Pipe

Seamless & Welded Pipe

Sizes: ½”  –  24″  /  15mm –  600mm

Schedule 10s  –  XXS

ASTM A213,  A312, EN 10297-2

Fittings

  • S10s
  • S40s
  • S80s
  • S160
  • XXS
  • Custom made

Flanges

Class 150  –  Class 2500

  • S10s
  • S40s
  • S80s
  • S160
  • XXS
  • Custom made

Plate

2mm  –  50mm Thickness

2000mm Width, 6000mm Length

ASTM A240 / A240M / 480

Bar

Cold Drawn Polished, Centerless Ground & Peeled

6mm – 190mm diameter  /  3/16″  –  15″

Random, Fix & Cut Lengths

ASTM A276

Valves

  • Plug Valves
  • Gate Valves
  • O-Port Through Conduit Valves
  • Globe Valves
  • Custom made

Product Standards

253 MA  –  UNS S30815  –  W. Nr./EN: 1.4835

ASTM:  A240,  A240M,  A276,  A312,  A358,  A409,  A473,  A479,  A813,  A814

ASME II A:  SA-240, SA-182,  SA-213,  SA-249,  SA-312,  SA-479  Boiler & Pressure Vessel Approved

Welding Wire:  UNS S30815 Base Metal/Solid Wire, W30816 Electrodes W. Nr./EN: 1.4835

253 MA Chemical Composition

CSiMnPSCrNiNCe
0.091.6≤0.03021110.170.05

253 MA Mechanical Properties at Room Temperature

GradeTensile Strength
(MPa) min
Yield Strength
0.2% Proof
(MPa) min
Elongation
(% in 50mm) min
Hardness
Rockwell
B(HR B) max
Hardness
Brinell
(HB) max
253 MA
UNS S30815
6003104095217
