APPLIED ALLOYS is Australia’s premier supplier of chrome-molybdenum pipe, fittings, flanges, and valves. We specialise in sourcing hard-to-find grades and specifications.
Our product range includes pipe manufactured to ASTM A335 and A369 standards in grades P11, P22, P5, P9, P91, and P92, as well as ASTM A691 grades 1¼Cr, 2¼Cr, 5Cr, 9Cr, and 91. We also supply tube to ASTM A213 grades T11, T22, T5, T9, T91, and T92, and plate to ASTM A387 Grades 12 Class 1 and 2, 11 Class 1 and 2, 22 Class 2, 22L, 21L Class 1, 21 Class 2, 5 Class 1 and 2, 9 Class 1 and 2, and 91.

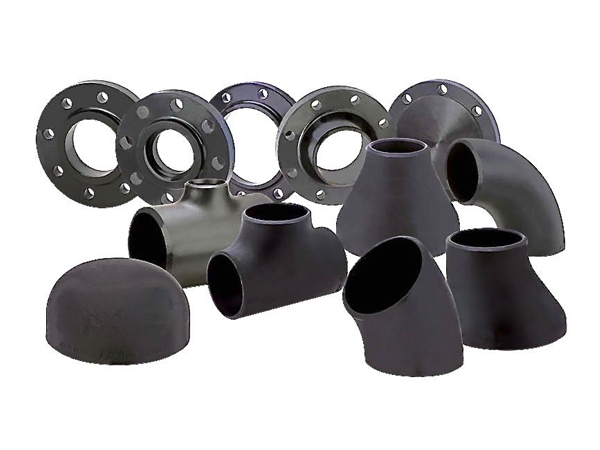

In addition, we supply flanges to ASTM A182 grades F11 (Class 1, 2, and 3), F22 (Class 1 and 3), F5, F9, F91, and F92, as well as butt weld fittings to ASTM A234 grades WP11, WP22, WP5, WP9, and WP91, including corresponding W-grade variants (WP11W, WP22W, WP5W, WP9W, and WP91W).
Chrome moly is a ferritic alloy-steel pipe for high-temperature service. Molybdenum increases the strength of steel as well as the elastic limit, resistance to wear, whilst chrome improves oxidation resistance at elevated temperatures. Designed to withstand high pressure, extreme temperatures, and demanding environments, ensuring long-lasting performance. Ideal for use in industries such as oil and gas, petrochemical, and power generation. Our chrome moly components offer superior resistance to corrosion, wear, and impact.
Chrome Moly Products
Pipe Chemical Requirements of Each Grade
| Chemical | P5 | P9 | P11 | P22 | P91 | P21 |
|---|---|---|---|---|---|---|
| Carbon | 0.15% | 0.15% | 0.05% – 0.15% | 0.05% – 0.15% | 0.05% – 0.15% | 0.15% |
| Manganese | 0.30% – 0.60% | 0.30% – 0.60% | 0.30% – 0.60% | 0.30% – 0.60% | 0.30% – 0.60% | 0.30% – 0.60% |
| Phosphorus | 0.025% | 0.025% | 0.025% | 0.025% | 0.025% | 0.025% |
| Sulfur | 0.025% | 0.025% | 0.025% | 0.025% | 0.025% | 0.025% |
| Silicon | 0.50% | 0.25% – 1.00% | 0.50% – 1.00% | 0.50% | 0.50% | 0.50% |
| Chromium | 4.00% – 6.00% | 8.00% – 10.00% | 1.00% – 1.50% | 1.90% – 2.60% | 4.00% – 6.00% | 4.00% – 6.00% |
| Molybdenum | 0.45% – 0.65% | 0.90% – 1.10% | 0.44% – 0.65% | 0.87% – 1.13% | 0.45% – 0.65% | 0.45% – 0.65% |
| Vanadium | – | – | – | – | 0.18% – 0.25% | 0.18% – 0.25% |
| Nitrogen | – | – | – | – | 0.030% – 0.070% | 0.030% – 0.070% |
| Nickel | – | – | – | – | 0.40% | 0.40% |
| Aluminum | – | – | – | – | 0.02% | 0.02% |
| Columbium | – | – | – | – | 0.06% – 0.10% | 0.06% – 0.10% |
| Titanium | – | – | – | – | 0.01% | 0.01% |
| Zirconium | – | – | – | – | 0.01% | 0.01% |
| Tungsten | – | – | – | – | – | 1.50% – 2.00% |
| Boron | – | – | – | – | – | 0.001% – 0.006% |
*Single value indicates max number
Pipe Specification of Each Grade
| Specs | P5 | P9 | P11 | P22 | P91 | P92 |
|---|---|---|---|---|---|---|
| Tensile Strength, min, PSI, (MPa) | 60,000 (415) | 60,000 (415) | 60,000 (415) | 60,000 (415) | 85,000 (585) | 90,000 (620) |
| Yield Strength, min, (MPa) | 30,000 (205) | 30,000 (205) | 30,000 (205) | 30,000 (205) | 60,000 (415) | 64,000 (440) |
Overview
SA387 and A387 are the standards for chrome-molybdenum alloy steel plates used in pressure vessel applications. These plates are available in Grades 12, 11, 22, 22L, 21L, 5, 9, 91. Plates can be cut to the required size or shape and are available for immediate shipping.
Chrome-molybdenum increases the materials temperature tensile strength making it an excellent choice for elevated temperature environments. A387 displays excellent corrosion resistant and weldability making it ideal for the fabrication of pressure vessels and industrial boilers in the petrochemical and oil industry.
253 MA Chemical Composition
| Grades | Chromium | Molybdenum | Tensile (MPA) | Yield (MPA) | Elong. (50mm) | Equivalents |
|---|---|---|---|---|---|---|
| Grade 12 Class 1 | 1.0% | 0.50% | 380 – 550 | 230 min | 22% min | – |
| Grade 12 Class 2 | 1.0% | 0.50% | 450 – 585 | 275 min | 22% min | BS 620B, EN 13CrMo45, ASTM/ASME A/SA387-12-2, DIN 13CrMo44 |
| Grade 11 Class 1 | 1.25% | 0.50% | 415 – 585 | 240 min | 22% min | – |
| Grade 11 Class 2 | 1.25% | 0.50% | 515 – 690 | 310 min | 22% min | – |
| Grade 22 Class 2 | 2.25% | 1.0% | 415 – 585 | 205 min | 18% min | BS 622-515B, EN 10CrMo910, ASTM/ASME A/SA387-22-2, DIN 10CrMo910 |
| Grade 22L | 2.25% | 1.0% | 415 – 585 | 205 min | 18% min | – |
| Grade 21L Class 1 | 3.0% | 1.0% | 415 – 585 | 205 min | 18% min | – |
| Grade 21 Class 2 | 3.0% | 1.0% | 515 – 690 | 310 min | 18% min | – |
| Grade 5 Class 1 | 5.0% | 0.05% | 415 – 585 | 205 min | 18% min | – |
| Grade 5 Class 2 | 5.0% | 0.05% | 515 – 690 | 310 min | 18% min | – |
| Grade 9 Class 1 & 2 | 9.0% | 1.0% | Cl1 415 – 585 Cl2 515 – 690 |
Cl1 205 min Cl2 310 |
18% min | – |
| Grade 91 | 9.0% | 1.0% | 585 – 760 | 415 min | 18% min | – |

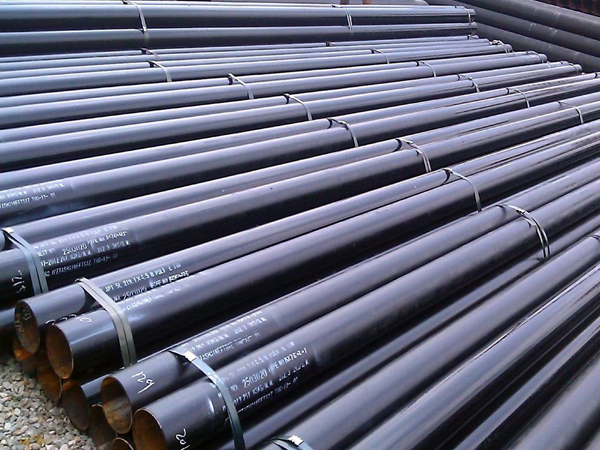

A369 / SA369 Forged & Bored
Seamless Pipe
Grades Available: P11, P22, P5, P9, P91, P92
- ½” – 30″ diameter
- STD, 40, XH, 60, 80, 100, 120, 140, 160, XXH
- Wall thickness up to 4″ thick
- UNS: K11597, K21590, K41545, S50400, K91560, K92460
A691 / SA691 Welded Pipe
Grades Available: 1 ¼ CR, 2 ¼ CR, 5CR, 9CR, 91
- ½” – 30″ diameter
- STD, 40, XH, 60, 80, 100, 120, 140, 160, XXH
- Wall thickness up to 3″ thick
- Trade Name: 1 ¼ Chrome, 2 ¼ Chrome, 5 Chrome, 9 Chrome, P91
A213 / SA213 Heater Tubes
Grades Available: T11, T22, T5, T9, T91, T92
- ½” – 30″ diameter
- STD, 40, XH, 60, 80, 100, 120, 140, 160, XXH
- Wall thickness up to 4″ thick
- UNS: K11597, K21590, K41545, K90941, K90901, K92460
A234 / SA234 Butt Weld Fittings
Seamless Grades: WP11, WP22, WP5, WP9, WP91. Welded Grades: WP11W, WP22W, WP5W, WP9W, WP91W
- ½” – 30″ diameter
- STD, 40, 60, 80, 100, 120, 140, 160, XXH
- Wall thickness up to 4″ thick
A182 / SA182 Forged Fittings
Grades Available: F11 Class 1, Class 2, Class 3; F22 Class 1, Class 3; F5, F9, F91, F92
- ⅛” – 4″ per ASME B16.11
- Threaded Fittings 2000#, 3000#, 6000#
- Socketweld Fittings 3000#, 6000#, 9000#
- Pipe nipples, swages, branch connections, olets etc.
A182 / SA182 Flanges
Grades Available: F11 Class 1, Class 2, Class 3; F22 Class 1, Class 3; F5, F9, F91, F92
- ½” – 24″ | 150# – 1500#
- Slip-on, Weld Neck, Socketweld | Threaded & Blind
- Raised Face Ring Type Joint ( RTJ )
- UNS: K11597, K11572, K21590, K41545, K90941, K92460
A218 / SA218 Forged Chrome Moly Valves
Grades Available: F11, F22, F5, F9, F91, F92
- Gate, Globe & Check Valves
- Custom made machined CrMo O-Port Valves
- UNS: J12072, J21890, J42045, J82090, J84090
A217 / SA217 Cast Chrome Moly Valves
Grades Available: WC6, WC9, C5, C12, C12A
- Gate & Globe Valves
- Check Valves
- UNS: J12072, J21890, J42045, J82090, J84090
A387 / SA387 Chrome Moly Plate
Grades Available: 12 Cl.1, 12 Cl.2, 11 Cl.1, 11 Cl.2, 22 Cl.2, 22L, 21L Cl.1, 21 Cl.2, 5 Cl.1, 5 Cl.2, 9 Cl.1 &2, 91
- Pressure Vessel Steel Plate
- BS: 622-515B 620B, EN: 13CrMo45 10CrMo910, ASTM/ASME: A/SA387-12-2 387-22-2, DIN: 13CrMo44 10CrMo910
