Slurry and High-Temperature Applications. PSZ Ceramic Lined Ball Valve — Available in ANSI Class 150 & 300


Ceramic Lined Ball Valves

Sizes 2” – 72”, Class 150-2500
Full Bore, Cavity Free, Class VI Shut-Off
Working Temperature up to 950° C, low pH acids, extreme media applications

Trueline Severe Service Through Conduit & O-Port Valves are specifically designed for high pressure service, abrasive processes which ten to coagulate, crystallise and require high torque to open & close.

Dual renewable tapered seats designed to direct the flow of process towards the center of the pipe on heavy slurries.

Renewable live loaded seats with integral scraper.

Optional bidirectional tight shut-off (zero leakage on high pressure)

Available in a range of materials including Carbon Steel, Stainless Steel, Titanium, Duplex, Hastelloy®, Ceramic, Stellite® and Tungsten Carbide etc.

O-Port Knife Gate Valve

Sizes: 1” to 4”
Class: 600 NPT Screwed Ends / ANSI 150 RF Flanged
Material: Carbon Steel or Stainless Steel Body with Stainless Steel Trim

The Segal Slurry Sampling Valves are used to draw live samples from the process. Specifically designed to pierce through any scale build-up on the inside of the pipe or vessel.

The Segal Sampling Valve can be used under high pressure conditions. The opening indicator provides operators clear and simple indication of the valve position. To prevent blockage to the inlet, the valve piston extends to the inner surface of the pipe whilst in the closed position. The Segal Sampling Valve is the standard when it comes to extracting fluid, slurry and viscous materials.

Sampling Valves

2″ ~ 36″ | Class 150, 300, 600
2″ ~ 18″ | Class 1500, 2500
¼” ~ 2″ | Class 4500

Our specialty check valves included swing check, bolted cover check, flanges check, pressure seal check, welded bonnet check, wafer check valves. Engineered to meet the complex and rigorous specifications required by the petroleum and chemical industries. Piston, ball or swing check with full port or standard port. Designed to perform reliably under extreme conditions, they are suitable for high-temperature, high-pressure, abrasive, corrosive, and scale-forming media.

We offer solutions for non-standard requirements, including hard-to-find sizes, uncommon geometries, and tight tolerances. All valves can be supplied with comprehensive testing and certification, including ultrasonic, radiographic (RT), dye penetrant (PT), micro-corrosion, Positive Material Identification (PMI), hot tensile, impact, and other industry-specific tests.

Check Valves

Slurry and High-Temperature Application. Long-life Ceramic Lined Slurry Control Valve with extended Body. ICON Butterfly Valves are suitable for all types of abrasive slurries including bauxite, coal, cement and mineral sands etc. The long body design ensures that turbulence related wear takes place inside the valve and not downstream in the pipe. A large range of material types are available including Fiberglass, Titanium, Inconel, Hastalloy etc. HVOF Tungsten Carbide or Stellite coated parts also available.

Features:

• PSZ (Partially Stabilised Zirconia) ceramic
• Replaceable ceramic sleeve and disc
• Mounting Pads & Offset square on shafts to ISO 5211 Standards

Ceramic Lined Butterfly Valves

Sizes 2” – 72”, Class 150, 300
Bidirectional, Dual Renewable Seats
Low and High Pressure
Designed for slurry or extreme media applications

The Trueline “Severe Service” O-Port Valve is precision-machined from solid plate, making it a benchmark solution for handling abrasive and corrosive slurries. Its full-bore, through-port design ensures zero leakage during actuation and reliable performance in both wet and dry media applications. Engineered for durability and minimal maintenance, it is suitable for all slurry types as well as dry bulk materials in harsh operating environments.

Severe Service Knife Gate Valve

Applied Alloys angle valve is specially designed for abrasive slurry that hardens and prevents other valves from operating.

Our unique angle valves are cavity-free and feature an innovative seat regrinding feature that has been designed for the bauxite – alumina industry. Available in a range of materials suitable for abrasion, corrosion, and/or high temperatures. Materials include Carbon Steel, Stainless Steel, Titanium, Duplex, Hastelloy®, Ceramic, Stellite® and Tungsten Carbide, etc.

Angle Valves

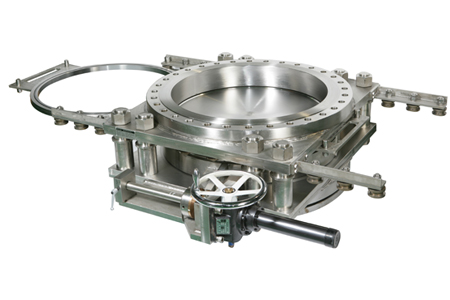

Quick Acting Sammi Pipeline Blinds

Size: ½” to 48″, DN15 – DN1200, and 100″ or DN2500
ASME Class 150 to Class 2500
Standard -20°C ~ 200°C
Cryogenic to High Temp -196°C ~ +816°C

SAMMI offers the most advanced pipeline blinds.. Sammi’s line blinds provide a valuable time-saving system for shut-down or maintenance requirements.

The innovative yet simple open-close mechanism of our Pipeline Blinds means that one person can easily, quickly and safely isolate piping – up to 48″ (DN1200).
Swinging Blinds can typically take many hours and may require a crane or other lifting device. Calculating the cost of swinging blinds must also include lost production time and this is where Sammi Pipeline Blinds outperform the competition and show their true worth.

Sammi Line Blind

Plug Valves are cavity free and therefore suitable for severe or slurry service.
Sizes: 2″ — 24″ (50NB —600NB)
Available in 2, 3 and 4 way configuration and can be manufactured from a large range of materials including carbon steel, stainless steel, titanium and duplex steels etc. Whether open or closed there is no dead space within the valve that can become clogged so these valves provide the user with long life trouble free operation. Full bore design can be tailored to suit any application – Internal dimensions can be made to suit Schedule 40, 80 or 160 piping thus maintaining normal flow characteristics at all times and allowing pipeline pigging if required.

Large range of stock – Repair all brands
Our service centre repairs all types including Icon, Durco, Xomox Tufline, Fluoroseal, Galli & Cassinni, 3Z etc.

Our signature Plug Valve, the ICON Fig 21 Full Bore Quarter Turn Valve is ready for immediate shipping. Quick turnaround manufacture from a large range of materials including carbon steel, stainless steel, titanium and duplex steels etc. The ICON Fig 21 is the standard for slurry applications, providing trouble free isolation at many refineries.

Plug Valves

Sizes: 2”~48” Class 150

Uni-Directional Knife Gate with optional resilient seat.

Trueline Uni-Direction utilises a back-up ring to convert to a 2-way shut off. The stopper allows the gate to form a tight seal against the seat.

All Trueline Knife Gate valves are built and tested in accordance with MSS-SP81 and TAPPI T1S 405-8 specifications. All metal-seated valves meet or exceed seat test requirements. Test data available on request.

Knife Gate Valves

Sizes: ¼” – 36″
Class 150 – 4500
Icon Valves supplies precision-engineered gate valves designed for reliable isolation in critical process applications. These valves are built to withstand high-pressure, high-temperature, and corrosive service conditions.

API 600, 602, 603, API 598, ASME B16.34, BS1414, PED, ATEX.

Screwed Gate Valve

Socket Weld Gate Valve

Flanged Gate Valve

Bolted Bonnet Gate Valve

Pressure Seal Gate Valve

Jacketed Gate Valve

Gate Valves

Special Valves for Severe Service – custom made

Specialty engineered valves are suitable for extreme service, abrasion, corrosion-resistant, viscous and solidifying, and/or high temperature applications. Valve body materials include: carbon steel, stainless steel, alloy 20, duplex, ceramic, chrome moly, composite material, hastelloy®, incoloy, inconel, monel, stellite, titanium, and tungsten carbide, etc.

Special Valves
